METAL HOSES STANDARD PITCH |
 |
- Metal hoses with parallel convolution: ASTM A240 TP321/316
- Braid: ASTM A580 TP304
- Couplings: carbon steel -AISI304 - AISI316
|
|

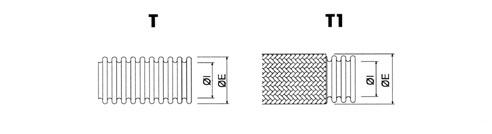

| Ø |
type |
ØI |
ØE |
MAX pressure at ambient temperature |
Minimum radius bending |
| Working |
Test |
Permanent |
Allowable |
| [mm] |
[mm] |
[bar] |
[bar] |
[mm] |
[mm] |
| 1/8" |
T |
6,2 |
9,7 |
20,0 |
30,0 |
15 |
80 |
| T1 |
6,2 |
10,8 |
125,0 |
187,5 |
25 |
80 |
| 1/4" |
T |
8,3 |
12,3 |
16,0 |
24,0 |
16 |
125 |
| T1 |
8,3 |
13,7 |
132,0 |
198,0 |
35 |
125 |
| 3/8" |
T |
10,6 |
15,1 |
2,5 |
3,8 |
18 |
100 |
| T1 |
10,6 |
17,0 |
64,0 |
96,0 |
18 |
100 |
| 1/2" |
T |
12,6 |
17,7 |
1,6 |
2,4 |
20 |
140 |
| T1 |
12,6 |
19,0 |
64,0 |
96,0 |
20 |
140 |
| 5/8" |
T |
16,6 |
22,2 |
1,6 |
2,4 |
25 |
190 |
| T1 |
16,6 |
24,0 |
64,0 |
96,0 |
25 |
190 |
| 3/4" |
T |
20,6 |
27,1 |
1,6 |
2,4 |
30 |
230 |
| T1 |
20,6 |
29,0 |
50,0 |
75,0 |
30 |
230 |
| 1" |
T |
25,6 |
33,2 |
1,6 |
2,4 |
40 |
260 |
| T1 |
25,6 |
35,0 |
50,0 |
75,0 |
40 |
260 |
| 1 1/4" |
T |
32,6 |
42,0 |
1,6 |
2,4 |
50 |
290 |
| T1 |
32,6 |
44,0 |
40,0 |
60,0 |
50 |
290 |
| 1 1/2" |
T |
40,5 |
51,5 |
1,0 |
1,5 |
60 |
320 |
| T1 |
40,5 |
54,0 |
25,0 |
37,5 |
60 |
320 |
| 2" |
T |
50,5 |
63,0 |
0,5 |
0,8 |
70 |
360 |
| T1 |
50,5 |
66,0 |
25,0 |
37,5 |
70 |
360 |
| 2 1/2" |
T |
65,5 |
80,0 |
1,0 |
1,5 |
80 |
420 |
| T1 |
65,5 |
83,0 |
16,0 |
24,0 |
80 |
420 |
| 3" |
T |
80,4 |
97,0 |
1,0 |
1,5 |
100 |
480 |
| T1 |
80,4 |
100,0 |
16,0 |
24,0 |
100 |
480 |
| 4" |
T |
100,4 |
119,0 |
1,0 |
1,5 |
120 |
580 |
| T1 |
100,4 |
122,0 |
16,0 |
24,0 |
120 |
580 |
| 5" |
T |
125,2 |
146,2 |
1,0 |
1,5 |
150 |
680 |
| T1 |
125,2 |
150,0 |
16,0 |
24,0 |
150 |
680 |
| 6" |
T |
150,2 |
173,2 |
0,8 |
1,2 |
200 |
800 |
| T1 |
150,2 |
177,0 |
12,5 |
18,8 |
200 |
800 |
| 8" |
T |
200,0 |
227,0 |
0,8 |
1,2 |
260 |
950 |
| T1 |
200,0 |
232,0 |
10,0 |
15,0 |
260 |
950 |
| 10" |
T |
250,6 |
281,6 |
0,6 |
0,9 |
340 |
1200 |
| T1 |
250,6 |
287,0 |
8,0 |
12,0 |
340 |
1200 |
| 12" |
T |
300,6 |
334,6 |
0,5 |
0,8 |
420 |
1600 |
| T1 |
300,6 |
340,0 |
4,0 |
6,0 |
420 |
1600 |
|
