GIUNTI IN GOMMA

  • Corpo interno: Neoprene - EPDM - Nitrile - Hypalon - Viton
  • Corpo esterno: Neoprene - EPDM
  • Flange: Acciaio al carbonio zincato - AISI 304/316

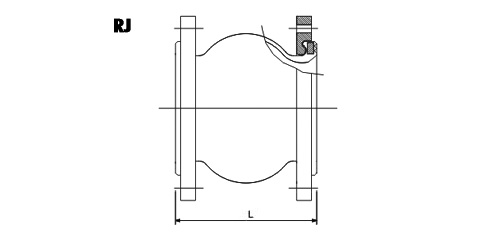

DN Corsa Max pressione fino a 80°C Sezione efficace Tipo RJ
assiale laterale angolare L
V H V+H I a
(+) (-) totale (±) (±)
[mm] [mm] [mm] [mm] [°] [bar] [cm²] [mm]
25 9.5 13 22.5 13 15 -0.65 +16 24 152
9 12 21 12 15 -0.65 +16 24 130
32 9.5 13 22.5 13 15 -0.65 +16 30 152
9 12 21 12 15 -0.65 +16 30 130
40 9.5 13 22.5 13 15 -0.65 +16 36 152
9 12 21 12 15 -0.65 +16 36 130
50 9.5 13 22.5 13 15 -0.65 +16 65 152
9 12 21 12 15 -0.65 +16 65 130
65 9.5 13 22.5 13 15 -0.65 +16 84 152
9 12 21 12 15 -0.65 +16 84 130
80 9.5 13 22.5 13 15 -0.65 +16 106 152
9 12 21 12 15 -0.65 +16 106 130
100 9.5 16 25.5 13 15 -0.65 +16 157 152
9 14 23 14 15 -0.65 +16 157 130
125 9.5 16 25.5 13 15 -0.65 +16 232 152
9 14 23 14 15 -0.65 +16 232 130
150 9.5 16 25.5 13 15 -0.65 +16 322 152
9 14 23 14 15 -0.65 +16 322 130
200 9.5 16 25.5 13 15 -0.65 +16 504 152
9 14 23 14 15 -0.65 +16 504 130
250 13 16 29 19 15 -0.65 +16 774 203
9 14 23 14 15 -0.65 +16 774 130
300 13 19 29 19 15 -0.65 +16 1074 203
9 16 25 16 15 -0.65 +16 1074 130
350 13 19 29 19 15 -0.65 +8 1389 203
400 13 19 29 19 15 -0.65 +8 1783 203
450 13 19 29 19 15 -0.65 +8 2183 203
500 13 19 29 19 15 -0.65 +8 2630 254
600 13 19 29 19 15 -0.65 +8 3627 254
700 13 19 29 19 15 -0.65 +8 4793 254
